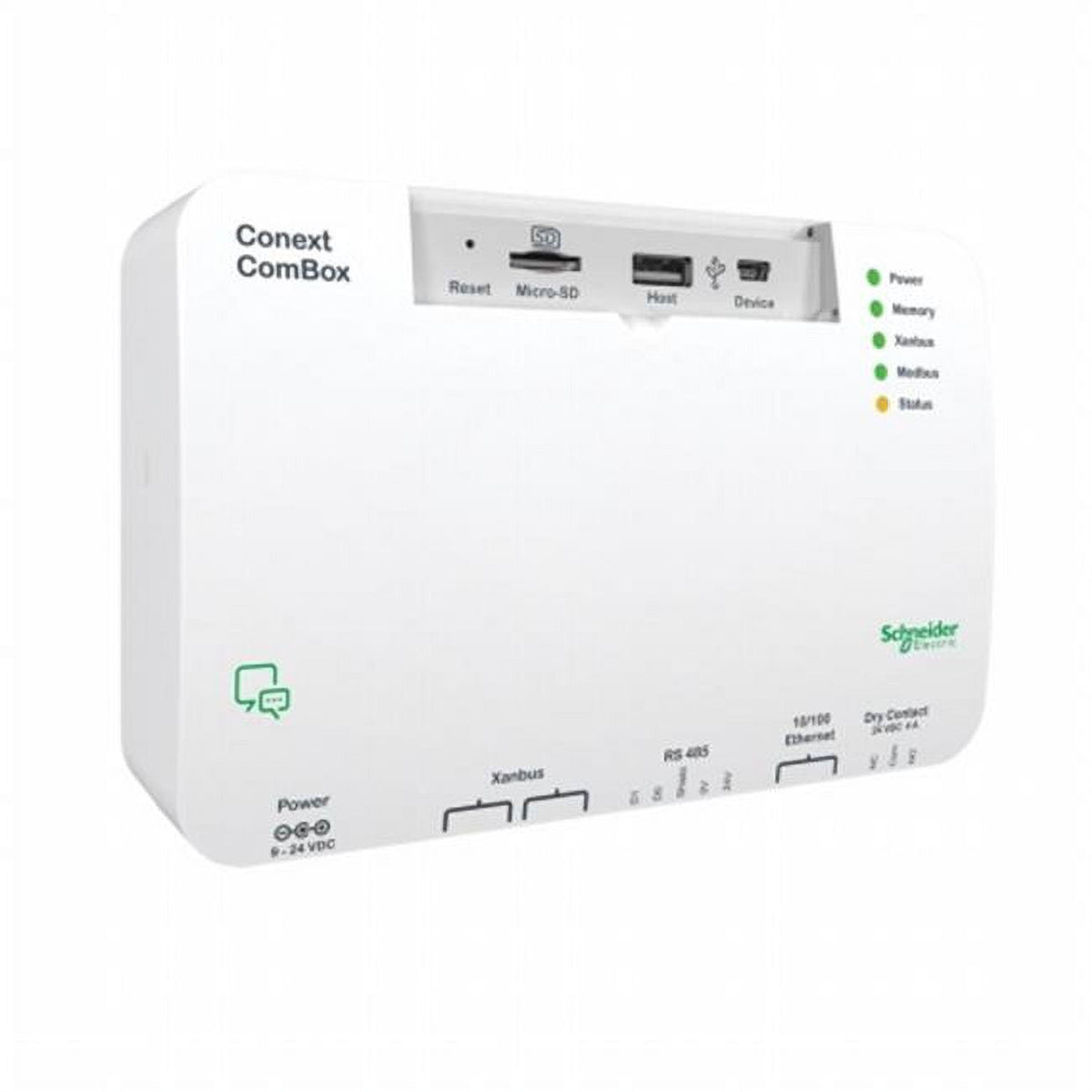

Xantrex Conext Combox Communication Box For Freedom SW Series Inverters & Chargers
$115.34
The Conext ComBox Communication Box for Freedom SW Series Inverters/Chargers provides an overall view of system performance for mobile power monitoring systems such as RV, Marine vessels, construction, and other heavy-duty applications. The ComBox Freedom SW lets you configure the system and devices, monitor performance, and access data logs through a web-based application on a Notebook or Android tablet app. An easy-to-read icon-based Monitor screen (tablet not included) shows graphical representation of energy flow between utility power, generator power, Freedom SW Inverter/Charger, RV house battery system, and AC loads.
Specifications- User Level Access
- Control Inverter - enable/disable
- Control Generator - off/on/auto
- Real-time clock - when set, keeps time for the entire system
- Shore breaker size (selectable range 5-50A)
- Provides a more comprehensive and user-friendly interface as an alternative to the SCP system control panel
- Data logging Battery charge (Watt-hours)
- Load consumption (Wh)
- Utility grid input (Wh)
- Generator input (Wh)
- Admin Level Access
- Setup - Advanced access for installers and technician support
- Hardware Features
- Powered by Xanbus network (Freedom SW Inverter/Charger, or supplied AC/DC adapter)
- Accepts USB thumb drive & micro SD card that provides additional data storage
- Compact, lightweight, easy to install
- Non-volatile memory - preserves the latest Conext ComBox settings if power is interrupted or network communication is disrupted
- Firmware storage and upgrade capability - upgrade firmware for Xanbus-enabled devices on the network
