Taramp's MD 250.1 Car Audio Amplifier 1 Channel 250 Watts Rms
$34.74
Skip to product information

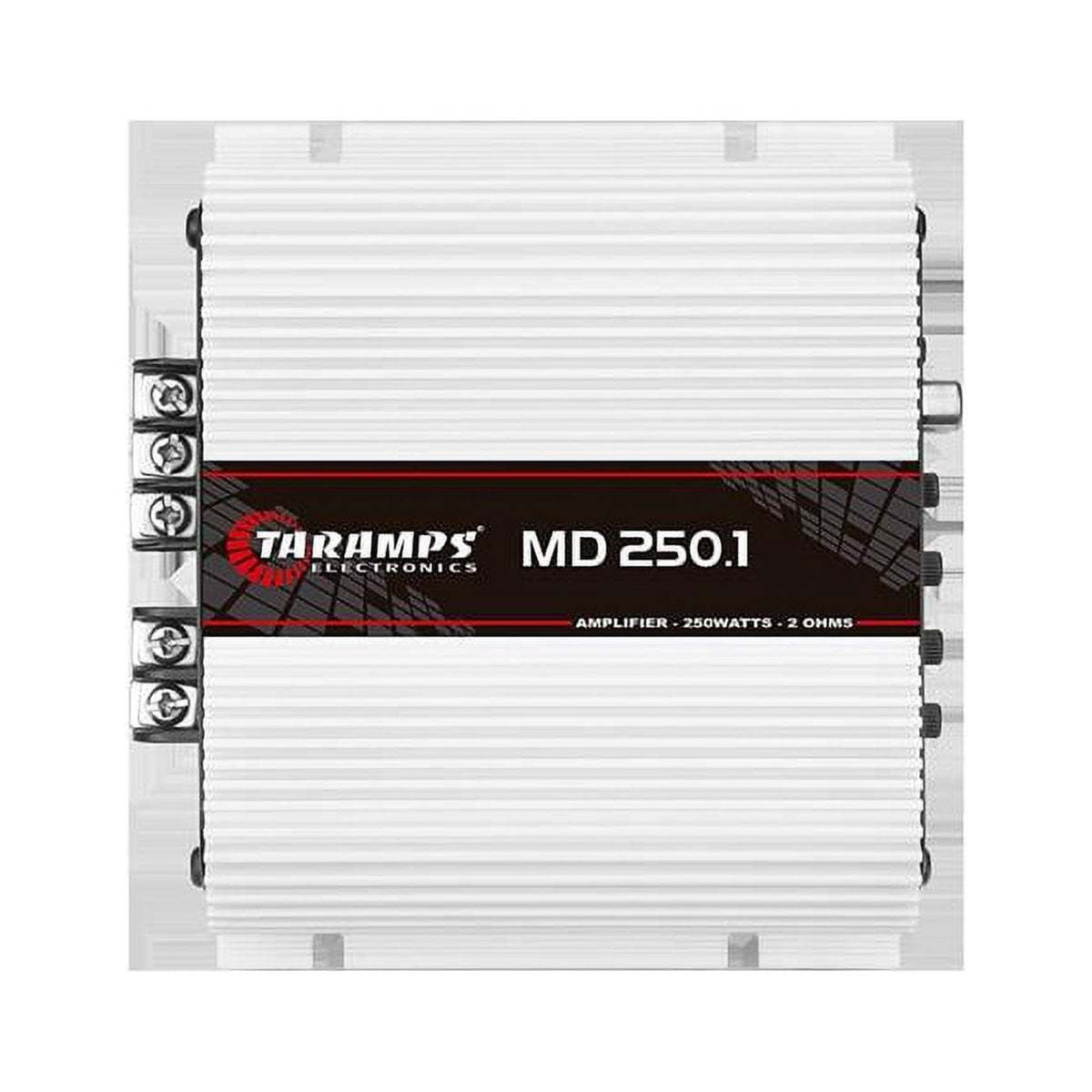

Taramp's MD 250.1 Car Audio Amplifier 1 Channel 250 Watts Rms
$34.74
Taramps presents the amplifier module MD 250.1 in the 2 ohms version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 250 Watts RMS. Welcome to the sound world of Taramps.
TECHNICAL ? INFORMATION
| OPERATION CLASS | Class D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 13,8 VDC - 2 OHMS: 250W RMS @ 13,8 VDC - 4 OHMS: 160W RMS |
| INPUT SENSITIVITY | 220mV |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 80Hz (-12dB/8a) Variable |
| CROSSOVER LOW PASS (LPF) | 80Hz ~ Full (-12dB/8a) Variable |
| BASS BOOST | 0 ~ 10dB (50Hz) |
| INPUT IMPEDANCE | 10K ohms |
| PROTECTION SYSTEM | Output short-circuit / thermal protection |
| MIN. SUPPLY VOLTAGE | 9 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | 0,5 A |
| MAXIMUM MUSIC CONSUMPTION | 12,5 A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 25 A |
| DIMENSIONS (H X W X D) | 5,43 x 1,92 x 5,19 |
| WEIGHT | 1,43lb |
| EAN | (PT) 7898556845090 |
