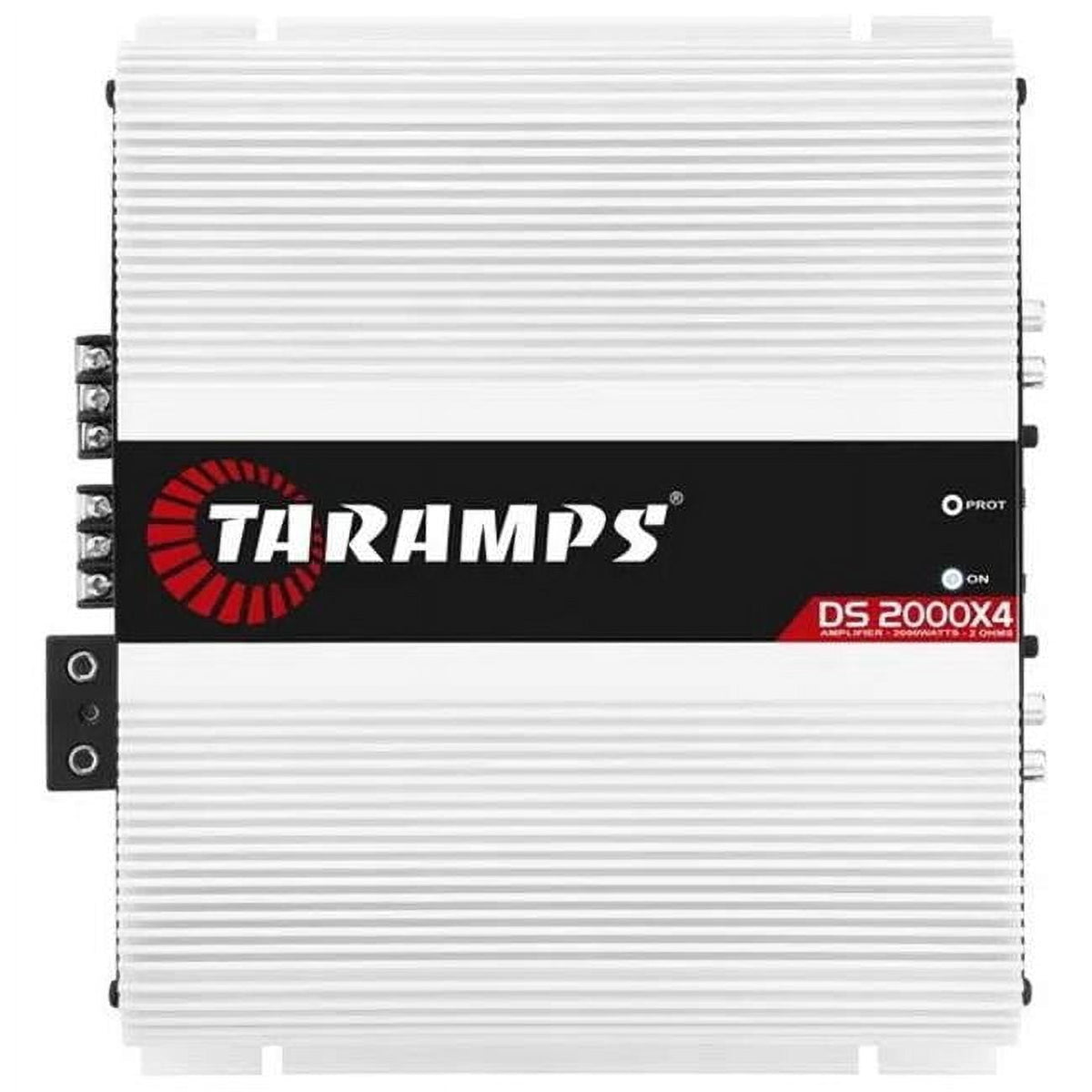

Taramps DS 2000X4 2-Ohms 2000W RMS 4-Channel Class-D Car Audio Amplifier
$92.60
Skip to product information
Taramps DS 2000X4 2-Ohms 2000W RMS 4-Channel Class-D Car Audio Amplifier
$92.60
The DS 2000¡Á4 is a Taramps ? multi-channel ?amplifier, carefully designed with the latest technology. It features 4 channels of 500 Watts RMS each, with maximum power of ? 2000 Watts RMS?altogether, at 2 ohms and is suitable for any frequency, that is to say, it is FULL RANGE. ? Versatility, efficiency and quality ?in a single Taramps product.
| OPERATION CLASS | D |
|---|---|
| NUMBER OF CHANNELS | 04 |
| MAXIMUM POWER | @ 14.4 VDC - 2 Ohms: 2000W RMS (4 x 500W RMS) @ 14.4 VDC - 4 Ohms: 1300W RMS (4 x 325W RMS) 2 Bridged Channels (2 x 1000WRMS) at 4 Ohms |
| INPUT SENSITIVITY | 250mV |
| SIGNAL TO NOISE RATIO | >86dB |
| FREQUENCY RESPONSE | 8Hz~20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 90Hz (-12dB/8a) Fixed |
| CROSSOVER LOW PASS (LPF) | 90Hz (-12dB/8a) Fixed |
| INPUT IMPEDANCE | 18K Ohms |
| PROTECTION SYSTEM | Output Overload |
| MIN. SUPPLY VOLTAGE | 9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 17VDC |
| CONSUMPTION AT REST | 2.2A |
| MAXIMUM MUSIC CONSUMPTION | 100A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 200A |
| DIMENSIONS (WXHXD) | 10,55 x 2,83 x 9,64 (268 x 72 x 245mm) |
| WEIGHT | 7,42lbs (3,37Kg) |
