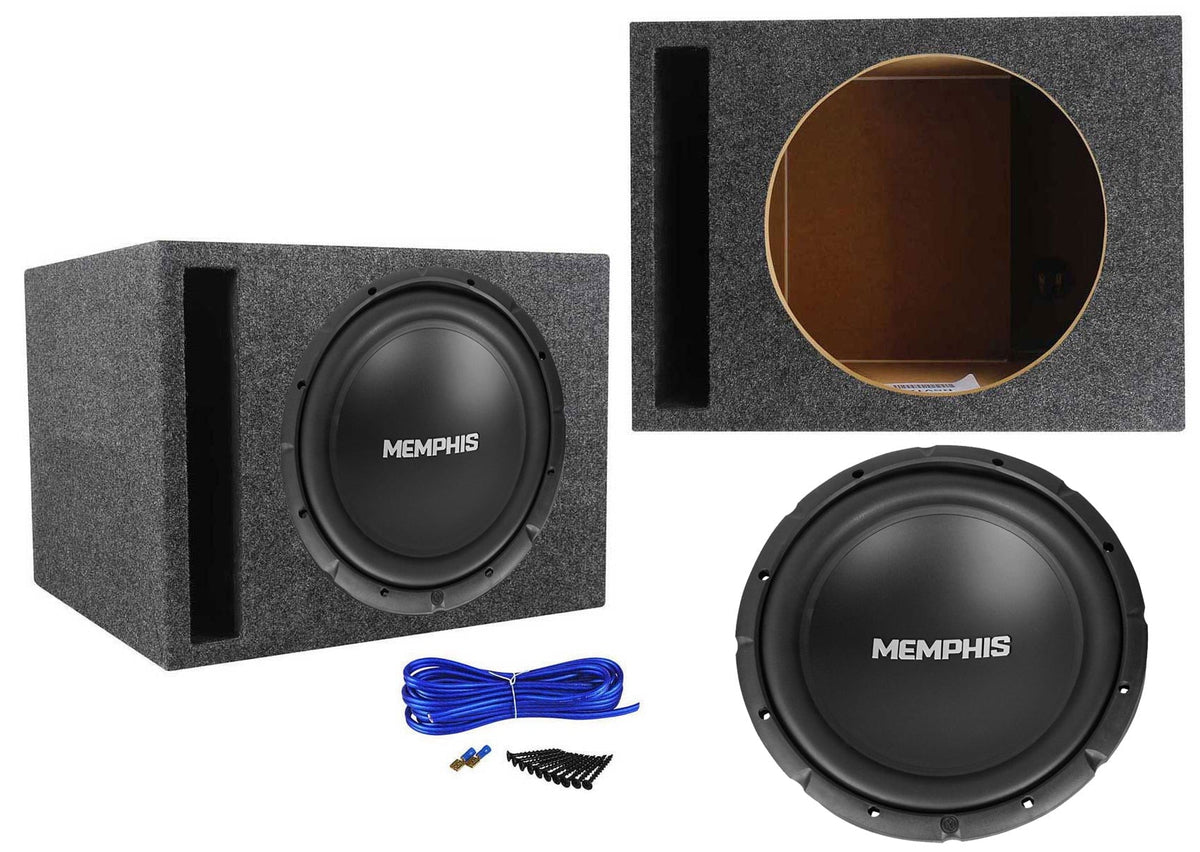

Memphis Audio SRX1244 12500w SRX DVC Car Subwoofer+Vented Sub Box Enclosure
$41.55
Skip to product information
Package Includes:
Memphis Audio SRX1244 12500w SRX DVC Car Subwoofer+Vented Sub Box Enclosure
$41.55
- (1) Memphis Audio SRX1244 12SRX Car Subwoofer Sub 500w Peak/ 250w RMS / Dual 4 Ohm(1) Rockville RSV12 Single 12¡± 1.22 cu.ft. 3/4MDF Vented Subwoofer Enclosure Box(1) Kicker 15Subwoofer(1) Rockville Single 15Vented/Ported Sub Enclosure10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)12 Feet of 14 AWG Blue Speaker Wire2 Spade Terminals
Description:
Whether it¡¯s your first system or you just need a little more bass in your trunk, the Street Reference line is the ultimate value subwoofer on the market. Redesigned from the ground up, SR subs are indistinguishable from their predecessors with improved performance, durability and cosmetics. Features:- Memphis Audio SRX1244 12SRX Car Subwoofer Sub 500w Peak/ 250w RMS / Dual 4 Ohm
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Optimized for both sealed and vented enclosures
- Lightweight but rigid cone design for improved efficiency
- Polypropylene cone for improved durability
- Progressive poly cotton spider for controlled motion resulting in lower distortion
- Rubber surround for improved durability
Specifications:
- Size: 12
- RMS Power: 250w
- Peak Power: 500w
- Voice Coil: Dual
- Impedance: 4-Ohm
- Sensitivity (dB): 85
- Magnet Size (Oz): 39
- Mounting Depth (in): 4.92
- Cut Out Diameter (in): 11.10
- Voice Coil Diameter (in): 2
- Service Contract: 1
TS Parameters:??
THIELE SMALL PARAMETERSResonant Frequency? (fs)30 HzMechanical Q3.54 QmsElectrical Q1.21 QesTotal Q0.902 QtsSensitivity?84.4 dBXmax Linear0.24 in.Xmax Mechanical0.8 in.Displacement0.09 cf.Air volume of suspension (Vas)2.406 cf.Moving Mass (Mms)155.8 gSuspension Compliance (Cms)0.186 mmNEffective piston area (Sd)510.71 SqCmMotor Strength (Bl)6.23 TMVOICE COIL & MAGNETImpedance Series8 ohmsImpedance parallel2 ohmsVoice coil diameter2 in.RMS Power250 WattsPeak Power500 WattsMagnet weight40 ozMagnet diameter4.73 in.PHYSICAL DIMENSIONSMounting depth4.96 in.Cutout Diameter11.1 in.Frame Outside Diameter12.6 in.ENCLOSURE RECOMMENDATIONSSingle sub sealed1.25 cf.Dual subs Sealed2.5 cf.Single sub vented2 GROSS cf.Port dimensions12.5x 1.5x 21L?Tuning frequency37 HzDual sub vented4 GROSS? cf.Port dimensions12.5x 3x 16L?Tuning frequency37 Hz LI.MsoNormal { MARGIN: 0in 0in 0pt; FONT-FAMILY: Times New Roman,serif; FONT-SIZE: 12pt; mso-style-parent: } Description of RSV12: The RSV12 single vented speaker box is made in the USA with Grade ¡°A¡± ?¡± MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ?¡± USA MDF is much stronger then any type of import wood.? This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you!? EVERY Rockville enclosure is
