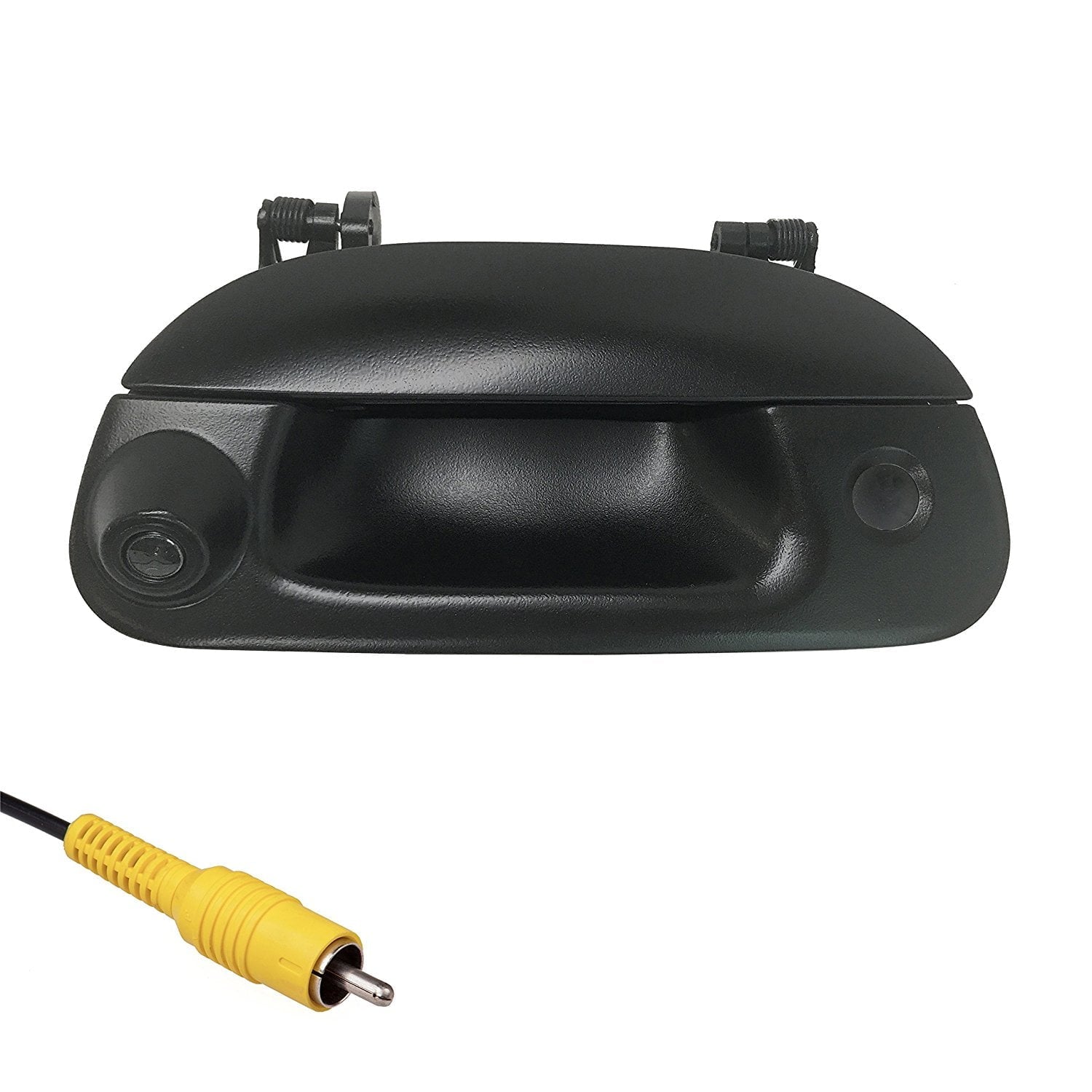

Master Tailgaters Tailgate Handle with Backup Camera w/ Key Hole Plug for Ford F150-F550 (1997-2007)

Tailgate Handle WITH Backup Reverse Camera ( Full Color Camera) with KEY HOLE PLUG

COLOR: Black

For use with (Years):
Ford F150 (Years: 1997-2004)
Ford F250 (Years: 1999-2007)
Ford F350 (Years: 1999-2007)
Ford F450 (Years: 1999-2007)
Ford F550 (Years: 1999-2007)

Description:
This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.
?Camera angle is pointed at a slight downward angle to provide full view of your trailer ball hitch.

Parking Grid: The backup camera also displays a parking grid for your safety. Should you not want it to Monitor the parking grid, it can be disabled.

Camera Specs:
Sensor: ?¡ì On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
Minimum Illumination : .1 Lux light sensitivity
Signal System : NTSC/PAL - 728 x 582 Picture Clarity
Electronic Shutter : 1/50 to 1/100,000s
Picture Clarity : 600 TV line
Angle : 170 Degree
Waterproof Rate : IP68
Current Consumption: 120mA Max
Power : DC 6v-12v
Operating Temperature : -4 to 167 F
Condition: New Attention!!!:
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation
-This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.
