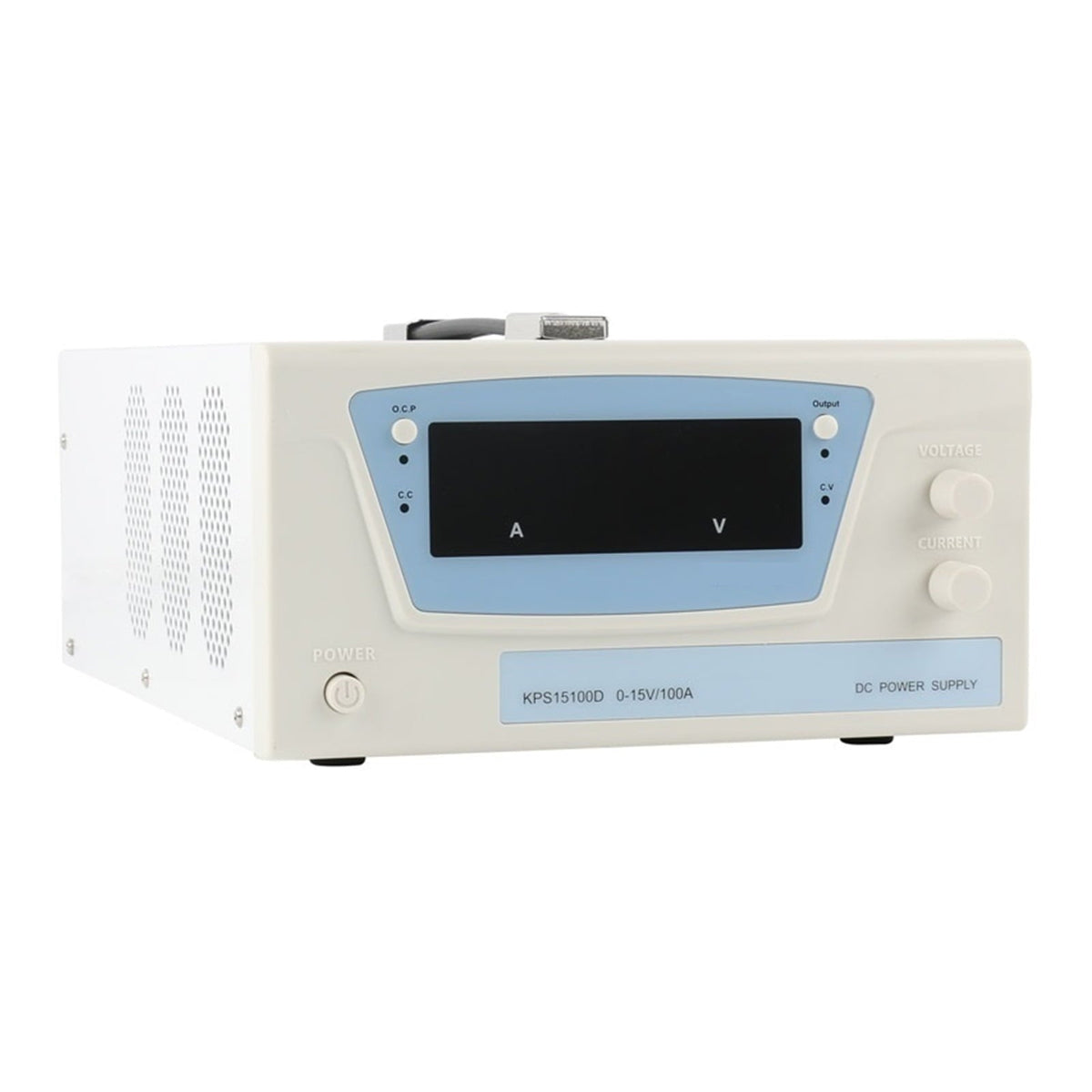

High Power Adjustable Lab DC Power Supply 0.01V 0.01A OCP Over Current And Short Circuit Protection ,Easy to Use
$77.79
Skip to product information
High Power Adjustable Lab DC Power Supply 0.01V 0.01A OCP Over Current And Short Circuit Protection ,Easy to Use
$77.79
Header Screen:
0.56 inch white four-digit digital tube Screen
Screen accuracy: 0.5%¡À3 words
Screen Screen Definition: voltage 0.01V, current 0.01A
Regulated state CV:
Voltage stability:0.5%¡À20mV
Load stability:0.5%¡À20mV
Ripple voltage:0.5% Vp-p
Steady flow state CC:
Current stability:0.5%¡À20mA
Load stability:0.5%¡À20mA
Ripple current:0.5% Vp-p
Temperature Coefficient:100ppm/
Rise Time: No load15ms, Fully loaded30ms
Dynamic response time: 2ms
Accessibility: output switch, OCP short circuit protection switch
Protective function: OVP,OCP,OPP,OTP
Accessories
AC power cord X1
Operation Manual X1
Certificate of Guarantee Card X1
Wiring copper terminal X2
Application field:
Electrolytic plating
Product aging test
Production line test
Charging batteries
Electronic device testing
Laboratory research and development test
School teaching experiment
Telecom Power
This product is a DC programmable power supply with exquisite appearance, small size, high performance, powerful function and simple operation. It is suitable for testing in aerospace and defense, consumer electronics, computers and peripherals, communications, semiconductors, solar energy and automotive electronics. The product can Screen voltage and current at the same time. The output voltage and output current are adjusted by the encoder knob, which can be continuously adjusted between 0 and the nominal value. It has high power, large current, fast response, and fast load transient response, Low noise, easy to use and other significant advantages! The stability and ripple coefficient of the power supply are very good. It has various protection circuits such as short-circuit protection, over-voltage protection, over-current protection, over-temperature protection, etc., which can work at full load for a long time and is deeply loved by users.
