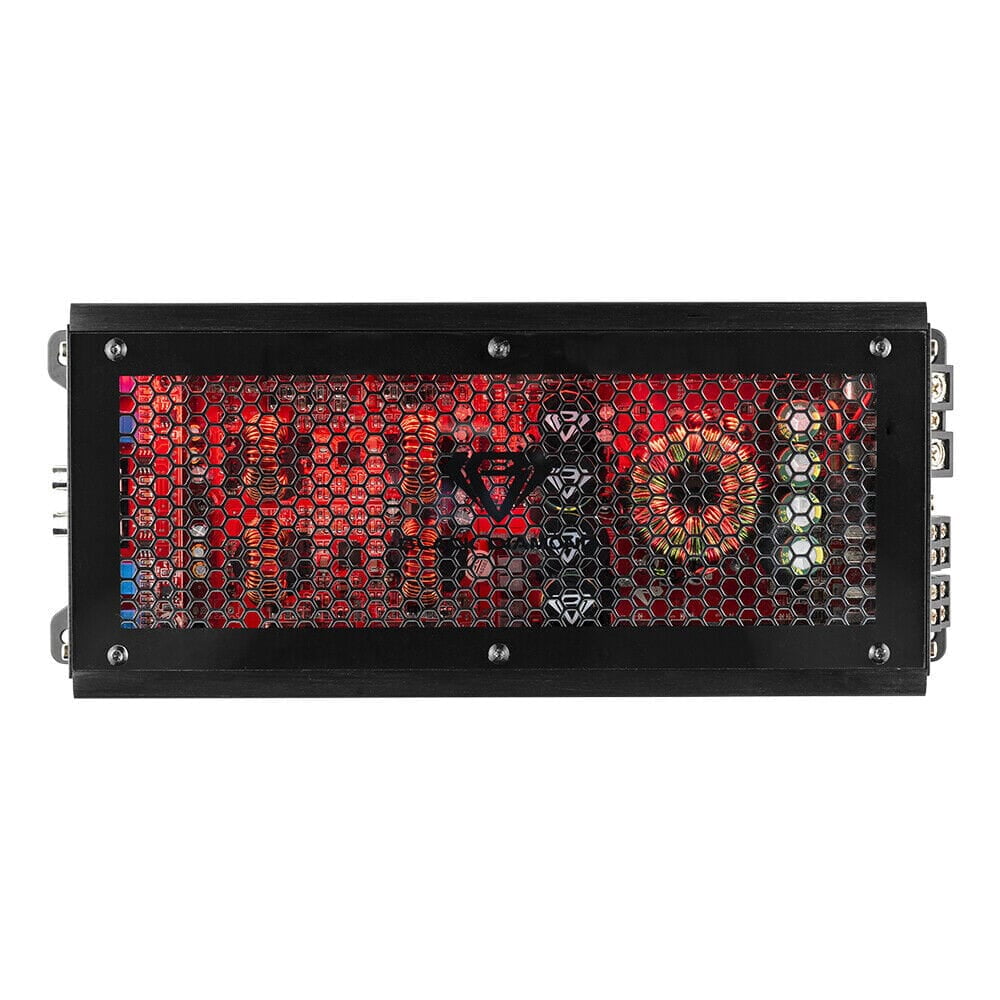

Black Diamond DIA-K4X: 4-Channel Full Range Class D Amplifier with 3200 Watts

Black Diamond DIA-K4X: 4-Channel Full Range Class D Amplifier with 3200 Watts

Experience a remarkable 3200 Watts of maximum power without compromising energy efficiency, thanks to cutting-edge technology. This amplifier features a premium mini digital circuit design with low-heat SMC technology, an acrylic window adorned with red LED lighting, and adjustable settings including gain, low-pass, bass boost, and subsonic filter. If you seek an amplifier capable of handling the entire frequency spectrum, your search ends here. Connect your most potent midranges, tweeters, drivers, or coaxials to this versatile full-range series.

This listing includes:
- (1) Black Diamond Car Audio - DIA-K4X
- (3) 40 Watt fuses
- (4) Spacers
- (4) Washers
- (4) Phillip Head Screws

POWER SPECIFICATIONS:
- Total Watts (Peak): 3200W
- RMS Power 4 ohm: 280W x 4
- RMS Power 2 ohm: 400W x 4
- RMS Power 4 ohm Bridged: 750W x 2

AUDIO SPECIFICATIONS:
- Frequency Response: 20Hz-45Khz
- Signal to Noise Ratio: >90dB
- Total Harmonic Distortion (THO): 0.01%
- Low Level input Range: 0.25-6V
- Selectable X-Over: LPF/FlAT/HPF
- X-Over Filter Range: 50-250Hz

FEATURES:
- Amplifier Class: Digital (D)
- Amplifier Type: 4CH Full Range
- Led Indicator: Power/Protection
- Power Input Terminal Size: 4ga
- Fuse Size: 3x40A
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Outlet Protection: Yes
- Short Circuit Output: Yes
- Voltage Input Protection: Yes

MEASUREMENTS:
- Overall Length: 11.33
- Overall Width: 4.72
- Overall Height: 1.96
- Heatsink Length: 10.15
- Gross Single Unit Weight: 4lbs
