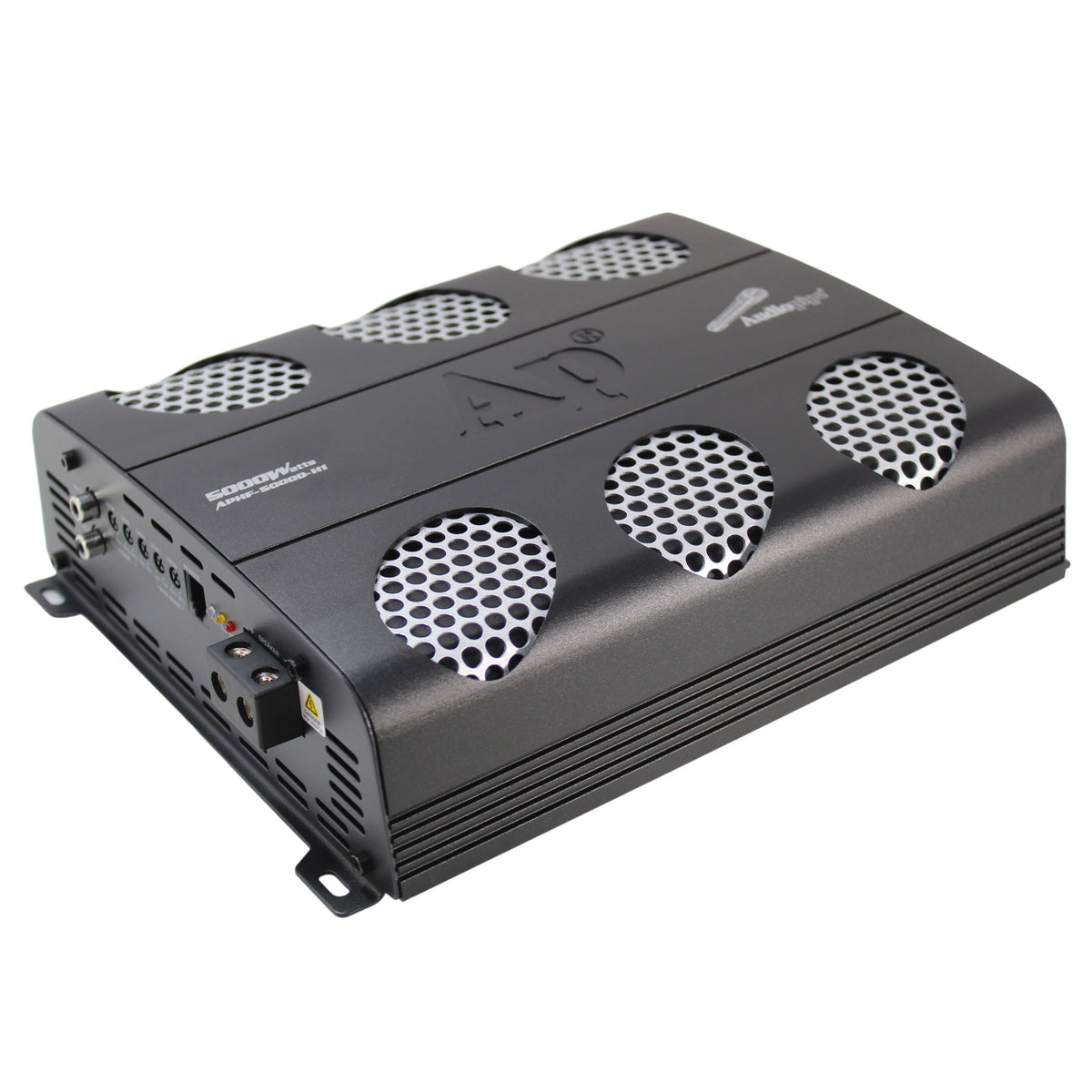

Audiopipe APHF-5000D-H1 Monoblock 5000W Max Full-Range Class-D Car Amplifier

BRAND NEW

AUDIOPIPE APHF-5000D-H1

1-Channel / Monoblock 5000 Watts Max Full-Range Class-D Car Amplifier

Our APHF-5000D-H1 Full Range Class D MOSFET Amplifier delivers an impressive 5000 Watts of clear and powerful professional audio. By harnessing Full Bridge Class D technology, this amplifier can provide more power to the load compared to a single-ended amplifier. Full bridge amplifiers are inherently more efficient, utilizing the entire power supply voltage. Additionally, the APHF-5000D-H1 features a comprehensive four-point protection system, guarding against electrical shortages, overheating, low voltage, and overvoltage. Take control of your audio system from the driver¡¯s seat with the extended Bass knob, while the clip monitor indicator alerts and ensures distortion-free sound. Boost your audio experience with our Full Range Class D MOSFET Power Amplifier!

Key Features:

FULL RANGE CLASS D MOSFET AMPLIFIER:

Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound.

DESIGNED WITH ADVANCED MOSFET CIRCUITRY:

Our Full Range Class D Mono Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power incased in a small footprint heatsink without sacrificing sound quality or performance.

MAXIMUM POWER OUTPUT:

As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 5000 Watts.

UNMATCHED PERFORMANCE:

Our amplifiers are the premier choice for Brazilian Style amplification with a track record of proven performance, ensuring an exceptional car audio experience.

FREQUENCY RESPONSE: 10Hz-20KHz

CONTINUOUS POWER OUTPUT:

RMS @ 4 Ohm (<1% DISTORTION): 1600W (14.4V)

RMS @ 2 Ohm (<1% DISTORTION): 3200W (14.4V)

RMS @ 1 Ohm (<1% DISTORTION): 5000W (14.4V)

SIGNAL TO NOISE RATIO: ¡Ý85dB

INPUT SENSITIVITY: 0.25 - 4V?

OVERLOAD PROTECTION:

This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience.

OVERHEAT PROTECTION:

This amplifier features an advanced heatsink, designed to provide superior overheat protection.

OVER-VOLTAGE PROTECTION: 16V??

UNDER-VOLTAGE PROTECTION: 9V

REMOTE SUBWOOFER VOLUME CONTROL:

This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier's performance.

HIGH PASS: 10Hz-80Hz 12dB/Octave?

?

LOW PASS: 80Hz-20KHz 12dB/Octave

BASS BOOST: 0-12 dB @ 35Hz-90Hz

DIMENSIONS: 10.2 x 9 x 2.9 (L x W x H) 259 x 229 x 73 mm
