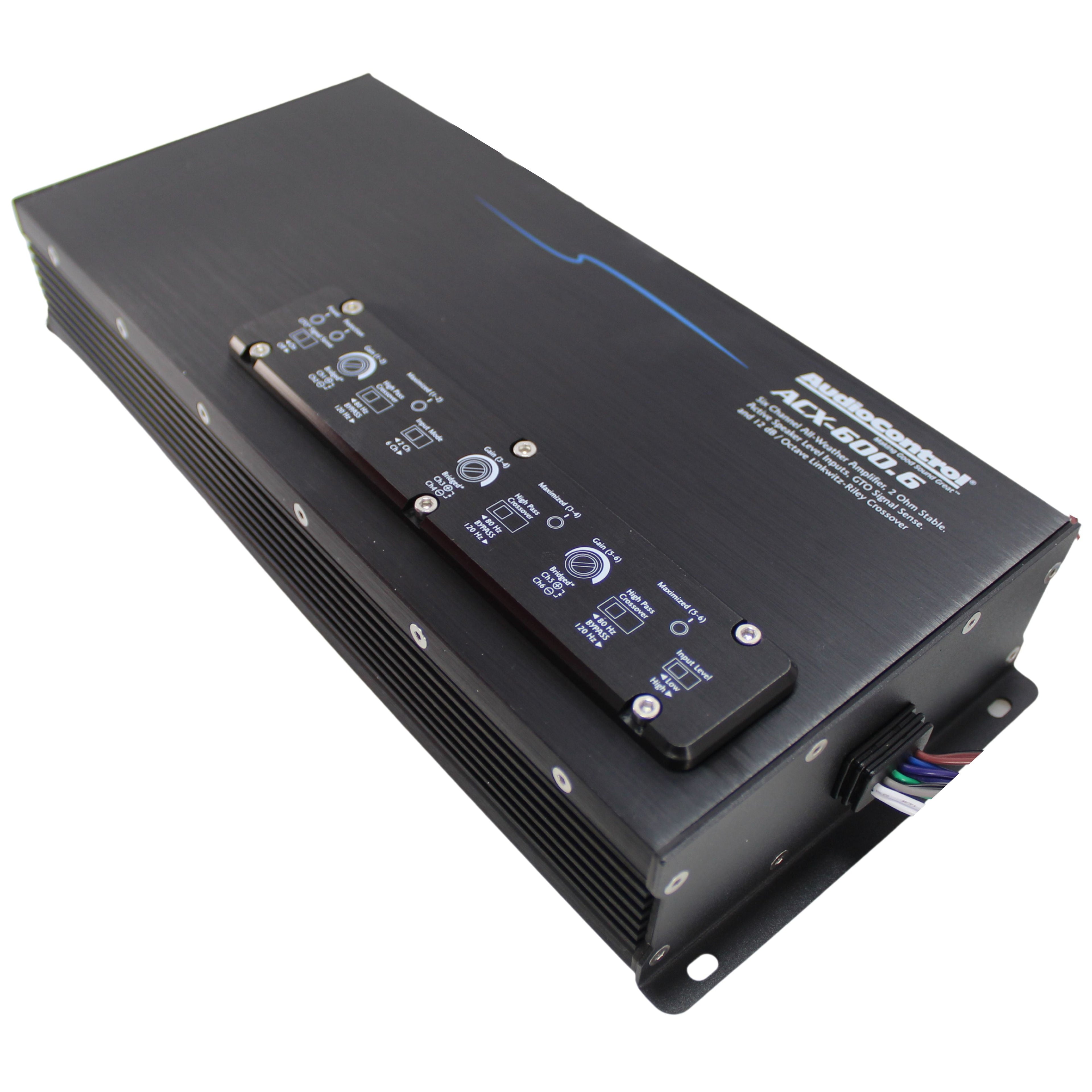

AudioControl ACX-600.6 Marine Powersports IPX6 All-Weather 6-Channel Amplifier

BRAND NEW

AUDIOCONTROL ACX-600.6

All-Weather 6-Channel Amplifier

Overview:

AudioControl¡¯s ACX-600.6 all-weather amplifier delivers honest power levels to the sound system in your boat, UTV, motorcycle, and more. The ACX-600.6 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.6 all-weather amplifier the perfect solution for your next adventure.

Key Features:

• 6 x 50 watts @ 4 ohms
• 6 x 100 watts @ 2 ohms
• 3 x 200 watts @ 4 ohms, bridged mono
• IPX6 Rated
• GTOTM Signal Sense
• High and low input modes
• Linkwitz-Riley Crossover

Specifications:

INPUTS

• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV ¨C 6 Vrms
• Input Voltage Range High: 1 Vrms ¨C 12 Vrms

OUTPUTS

• Rated Continuous (RMS) Power at 14.4V:
• 4 ¦¸ ¨C 50 W x 4
• 2 ¦¸ ¨C 100 W x 4
• Bridged 4 ¦¸ ¨C 200 W x 3

PERFORMANCE

• Frequency Response: 26 Hz ¨C 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

GENERAL

• Recommended Fuse Rating: 30A

WEIGHTS & DIMENSIONS

• Dimensions: 11.97¡åW x 5.31¡åD x 2.36¡åH
• Weight: 5.4 lbs. (2.45 kg)

IN THE BOX

• ACX-600.6, Manual, Guarantee
