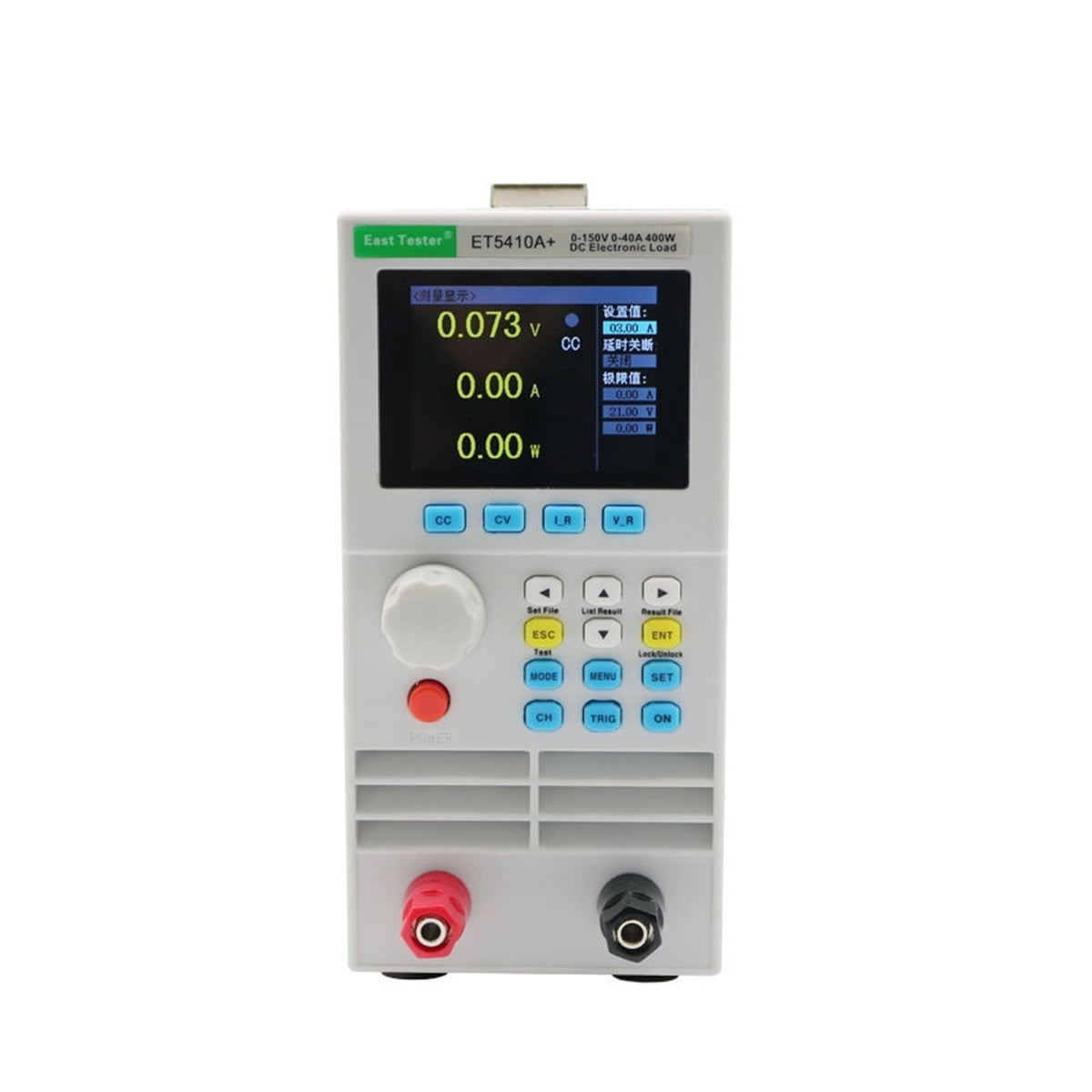

400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load Battery Capacity Tester Load Meter Monitor ,Easy to Use
$118.97
Skip to product information
400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load Battery Capacity Tester Load Meter Monitor ,Easy to Use
$118.97
High-performance load:
Voltage:0-150V
Current:0-40A
Power:0-400W
The basic measurement modes of CC, CV, CR, CP, CC+CV, CR+CV are provided.
Provide professional battery test and LED test;
Dynamic test mode, can test the dynamic power output performance;
Scanning test mode can test the continuity of power output within a certain range.
List mode, which can simulate various loaded state changes;
Short circuit test for simulating load short circuit;
The measurement model of the far end can improve the measurement accuracy when the current is high.
Support external trigger input;
Built-in buzzer alarm;
Power off to maintain data storage function;
Remote operation can be carried out through RS-232 interface and USB Device interface.
With PS2 interface, support external keypad to set data values.
1. For teaching experiments, research
2. Testing and aging for electronic production line products
3. For the repair of communication equipment
4. Tattoo industry.
5. Electroplating experiments.
6. Other areas that require DC regulated power supplies
